To drive an LCD segment, the driving voltage must be applied between the segment and BP terminals.

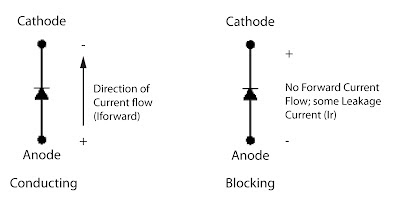

Common anode cathode led full#
The full explanation for this is a little complicated, as follows. In the Figure 9 LCD-driving circuit, the display’s common BP (back-plane) terminal and the IC’s phase input terminals must be driven by a symmetrical squarewave (typically 30Hz to 200Hz) that switches fully between the two supply rail voltages (0V and V+), as shown. Method of driving a liquid-crystal display (LCD). Method of driving a common-cathode LED display.įIGURE 9.
Method of driving a common-anode LED display.įIGURE 8.
Common anode cathode led driver#
To drive a common-cathode display ( Figure 8), the driver must have an active-high output.įIGURE 7. To drive a common-anode display ( Figure 7), the driver must have an active-low output, in which each segment-driving output is normally high, but goes low to turn a segment on.
Common anode cathode led series#
Note in the case of the LED circuits ( Figures 7 and 8) that, if the IC outputs are unprotected (as in the case of most TTL ICs), a current-limiting resistor must be wired in series with each display segment (about 150R with a 5V supply, or 680R at 15V) most CMOS ICs have internally current-limited outputs, and do not require the use of these external resistors. Figures 7 to 9 show the methods of interconnecting each of these IC and display types. In practice, BCD-to-seven-segment decoder/driver ICs are usually available in a dedicated form that is suitable for driving only a single class of display unit, e.g., either common-anode LED type, or common-cathode LED type, or liquid crystal displays (LCDs). Truth table of a BCD-to-seven-segment decoder/driver. The table in Figure 6 shows the relationship between the BCD signals and the displayed seven-segment numerals.įIGURE 6. Basic connections of a BCD-to-seven-segment decoder/driver IC. Consequently, special BCD-to-seven-segment decoder/driver ICs are available to convert the BCD signal into a form suitable for driving these displays, and are connected between the BCD signals and the display in the manner shown in Figure 5.įIGURE 5. These outputs are usually in four-bit BCD (Binary Coded Decimal) form and are not suitable for directly driving seven-segment displays. In most practical applications, seven-segment displays are used to give a visual indication of the output states of digital ICs such as decade counters and latches, etc. Schematic diagram of a common-cathode seven-segment LED display. Schematic diagram of a common-anode seven-segment LED display.įIGURE 4. In the former case, the device is known as a common-anode seven-segment display in the latter case, the device is known as a common-cathode seven-segment display.įIGURE 3. If the display is an LED type, the seven individual LEDs may be arranged in the form shown in Figure 3, in which all LED anodes are connected to the common terminal, or they may be arranged as in Figure 4, in which all LED cathodes are connected to the common terminal.
Practical seven-segment display devices must be provided with at least eight external connection terminals seven of these give access to the individual photoelectric segments, and the eighth provides a common connection to all segments. The segments are conventionally notated from a to g in the manner shown in the diagram, and it is possible to make them display any number (numeral) from 0 to 9 or alphabetic character from A to F (in a mixture of upper and lower case letters) by activating these segments in various combinations, as shown in the truth table in Figure 2.įIGURE 2. Standard form and notations of a seven-segment display. The best known type of alphanumeric indicator is the seven-segment display, which comprises seven independently-accessible photoelectric segments (such as LEDs or LCDs, or gas-discharge or fluorescent elements, etc.) arranged in the form shown in Figure 1.įIGURE 1. Digital watches, pocket calculators, and digital multimeters and frequency meters are all examples of devices that use such displays.
» Skip to the Extras SEVEN-SEGMENT DISPLAYSĪ very common requirement in modern electronics is that of displaying alphanumeric characters.
